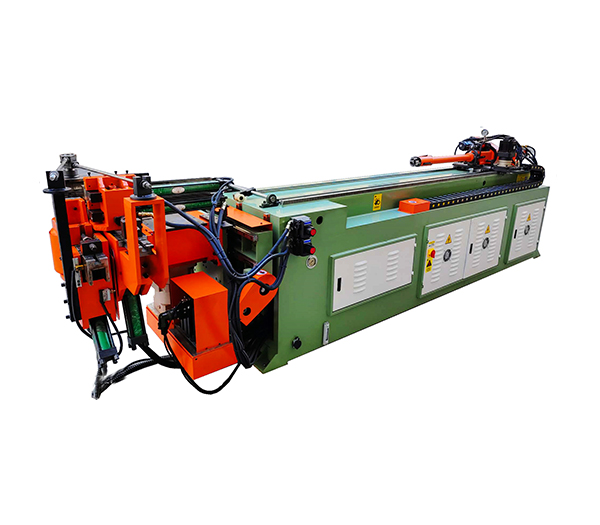

63全自动弯管机

Key Specifications

DW38CNC

Notes

maximum bending diameter × wall thickness

Φ60mm × 3mm

1. Minimum bending radius according to pipe diameter
2. Maximum bending radius according to customer requirements
3. Maximum core length of wear based on customer requirements

maximum bending radius

R300mm

minimum bend radius

R20mm

maximum bending angle

190 °

maximum feed length

2500mm

Feeding

direct- pinch

pace of work

bending speed

Max 35° /s

Rotary speed

Max 200 ° /s

feeding rate

Max 1000mm /s

working precision

bending precision

± 0.1 °

Rotary precision

± 0.1 °

feeding accuracy

± 0.1mm

data input

1. coordinates (X. Y. Z)
2. work value (YB C )

bending mode

1. servo pipe: 1kw (axis above)
2. hydraulic pipe

Rotary servo motor power

1500w

feeding servo motor power

1500w

elbow pipe to allow the number of

1. 12
2. 33

parts store a few

1. 330
2. 125

hydraulic motor power

7.5kw

system pressure

12 Mpa

machine size

4500 x1100x 1500mm

Weight

2100kg
