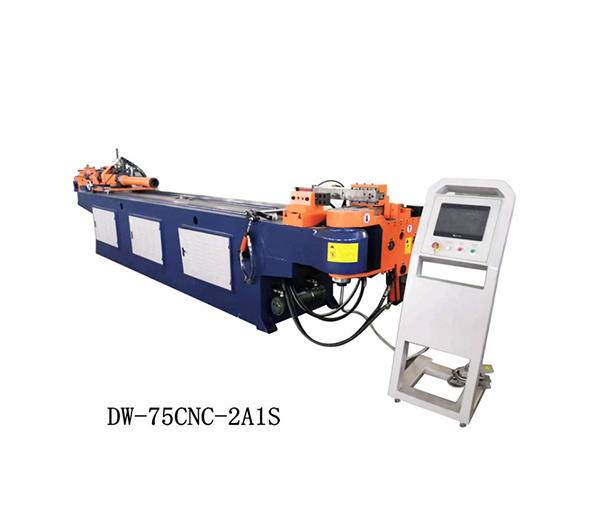

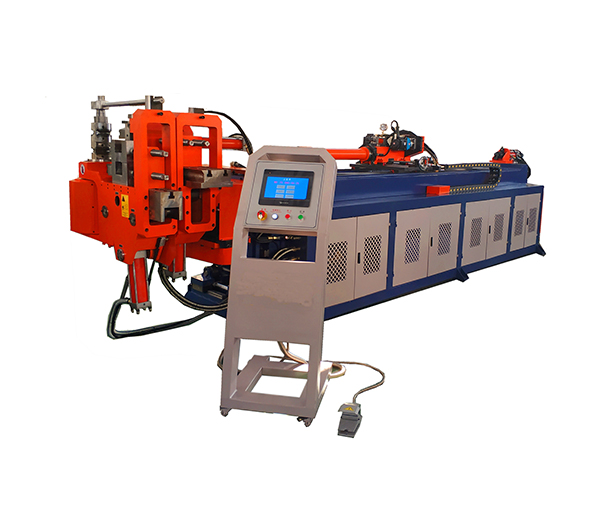

75全自动弯管机

Key Specifications

DW38CNC

Notes

maximum bending diameter × wall thickness

Φ75mm × 3mm

1. Minimum bending radius according to pipe diameter
2. Maximum bending radius according to customer requirements
3. Maximum core length of wear based on customer requirements

maximum bending radius

R400mm

minimum bend radius

R30mm

maximum bending angle

190 °

maximum feed length

3600mm

Feeding

direct- pinch

pace of work

bending speed

Max 40° /s

Rotary speed

Max 180° /s

feeding rate

Max 800mm /s

working precision

bending precision

± 0.1 °

Rotary precision

± 0.1 °

feeding accuracy

± 0.1mm

data input

1. coordinates (X. Y. Z)
2. work value (YB C )

bending mode

1. servo pipe: 10kw

Rotary servo motor power

1.5w

feeding servo motor power

2kw

elbow pipe to allow the number of

1. 12
2. 33

parts store a few

1. 330
2. 125

hydraulic motor power

11kw

system pressure

12 Mpa

machine size

4950 x1350 x 1600mm

Weight

3200kg
