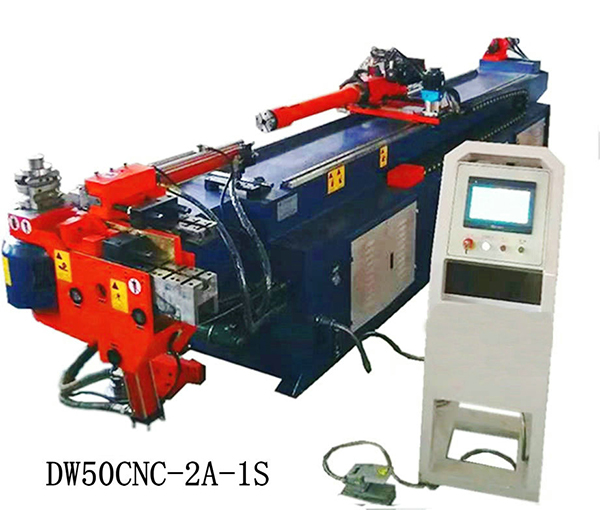

50全自动弯管机

Key Specifications

DW-50CNC

Notes

maximum bending diameter × wall thickness

Φ50mm × 3mm

1. Minimum bending radius according to pipe diameter
2. Maximum bending radius according to customer requirements
3. Maximum core length of wear based on customer requirements

maximum bending radius

R250mm

minimum bend radius

R20mm

maximum bending angle

190 °

maximum feed length

2600mm

Feeding

direct-
pinch

pace of work

bending speed

Max 85 ° /s

Rotary speed

Max 200 ° /s

feeding rate

Max 1000mm /s

working precision

bending precision

± 0.1 °

Rotary precision

± 0.1 °

feeding accuracy

± 0.1mm

information input

1. coordinates (X. Y. Z)
2. work value YB C)

bending mode

1. servo pipe: 1kw (axis above
2. hydraulic pipe < /TD>

Rotary servo motor power

750w

feeding servo motor power

1kw

elbow pipe to allow the number of

1. 12
2. 33

parts store a few

1. 330
2. 125

hydraulic motor power

7.5kw

system pressure

12 Mpa

machine size

4200 x 900 x 1300mm

Weight

1700kg
