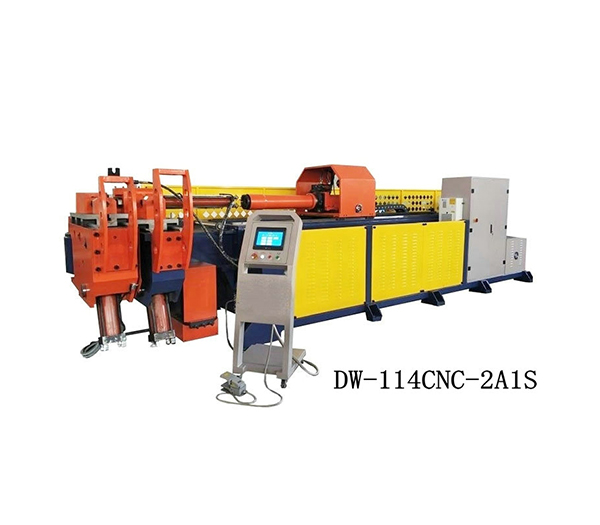

114全自动弯管机

Key Specifications

DW38CNC

Notes

maximum bending diameter × wall thickness

Φ114mm × 8mm

1. Minimum bending radius according to pipe diameter
2. Maximum bending radius according to customer requirements
3. Maximum core length of wear based on customer requirements

maximum bending radius

R600mm

minimum bend radius

R90mm

maximum bending angle

190 °

maximum feed length

4000mm

Feeding

direct- pinch

pace of work

bending speed

Max 30 ° /s

Rotary speed

Max 160 ° /s

feeding rate

Max 800mm /s

working precision

bending precision

± 0.1 °

Rotary precision

± 0.1 °

feeding accuracy

± 0.1mm

data input

1. coordinates (X. Y. Z)
2. work value (YB C )

bending mode

servo

Rotary servo motor power

2w

feeding servo motor power

5kw

elbow pipe to allow the number of

1. 12
2. 33

parts store a few

1. 330
2. 125

hydraulic motor power

22kw

system pressure

12 Mpa

machine size

6700 x 1350 x 1650mm

Weight

7000kg
